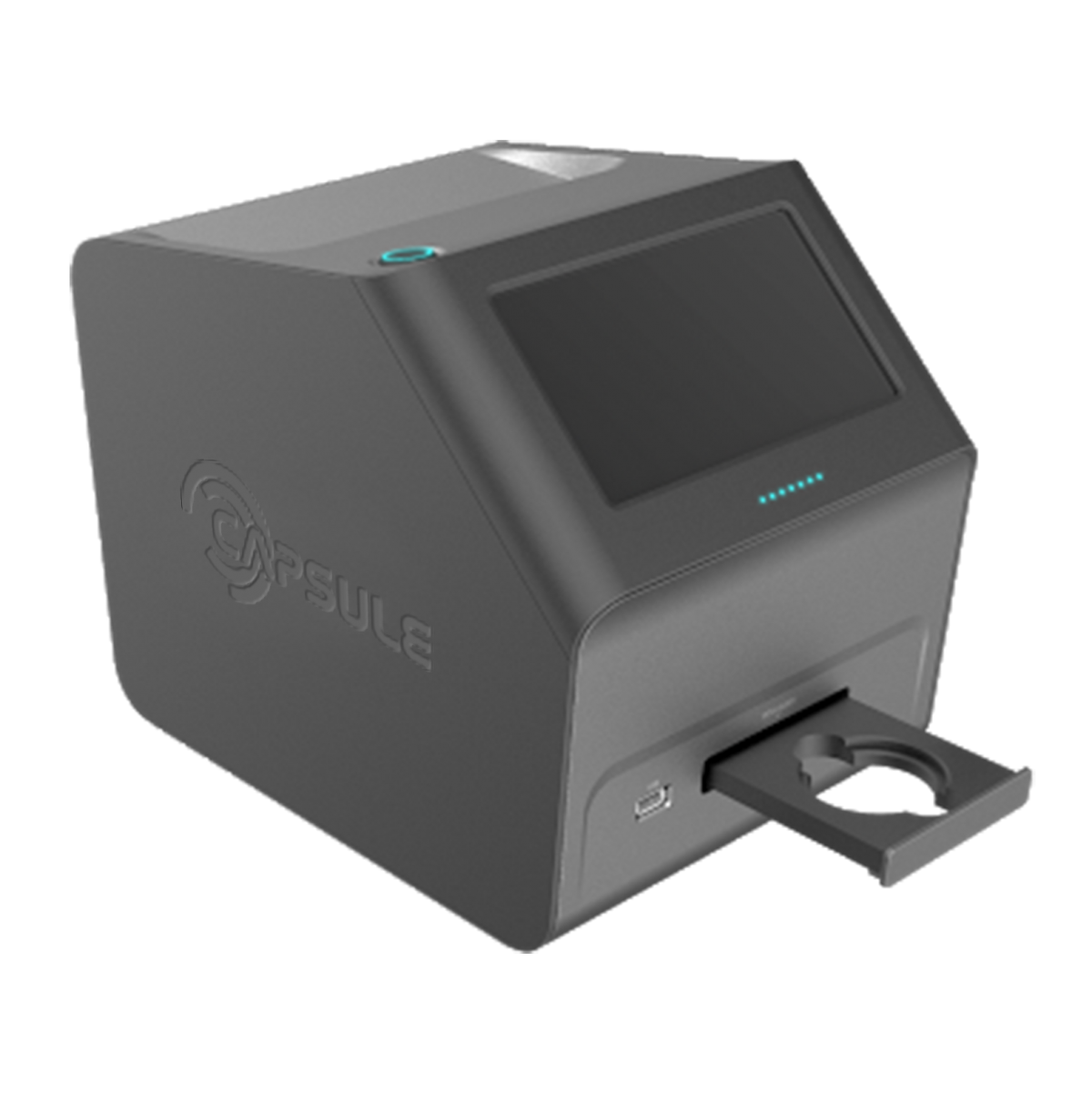

Vartector

Vartector

Vartector detects the risk of turbine oil varnish ASTM D7843. The CIE delta E value, the optical colorimetric notation, is used to diagnose the risk of varnish formation.

DOWNLOAD DATASHEET

VARTECTOR detects the risk of turbine oil varnish ASTM D7843 (Standard Test Method for Measurement of Lubricant Generated Insoluble Color Bodies in In-Service Turbine Oils using Membrane Patch Colorimetry).

Potential hazards of turbine oil varnish warns that problems such as turbine bearing vibration and temperature rise, filter clogging, poor temperature control, turbine oil degradation may occur.

VARTECTOR diagnoses the potential hazards of varnish and soot in the control oil (phosphate ester Inflammable hydraulic oil) of the EHC system through CIE delta L value and a and b values as optical colorimetric notation,It is possible to diagnose whether the composition of the thermal load is created soot or varnish or whether both carbon and varnish are present and its seriousness. When CIE delta L value is high, it means generation of soot.

It means that there is a bubble problem in the system and pump cavitation problem. When a and b values are high, it means a risk of varnish formation. Warning of danger.

Features

  • Fully Automation: Unlike existing MPC tester, the process of loading, validating, and testing the samples is done automatically within 10 seconds after patching.
  • Display: Patch image, MPC delta E, delta L, a, b value, Trending per machine to be managed.
  • Complied to ASTM D7843: MPC tester for laboratory analyzer that meets ASTM D7843 for the first time in the world
  • Automatic Diagnostic Reporting: Automatic diagnosis of the measured result (normal a, normal b,caution, warning)
  • Automatic Validation: Unlike existing MPCs for existing portable devices, it is built in the device and automatically performs device validation after power on.
  • Automatic Self Diagnostic: Perform self-diagnosis of major components such as spectrophotometer and board after power on
  • Trending: It is possible to manage the tendency when testing after registering facility information for each machine to be managed in the connector.
  • Advanced Software: Perform manual validation, set reference value for management target, trending, save more than 10,000 tables, perform instrument calibration
