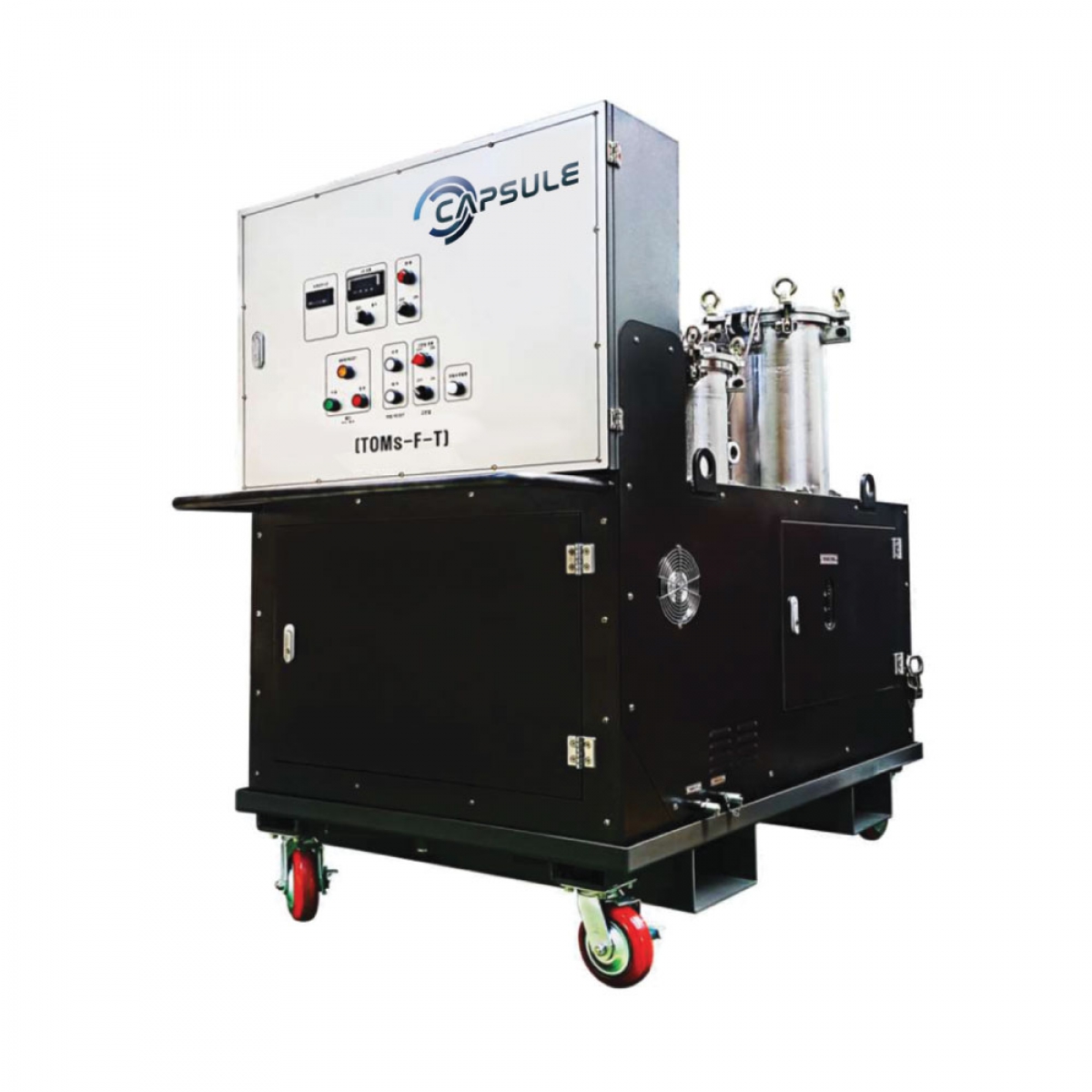

All in One Contamination Removal

All in One Contamination Removal

The Solution for Particle, Sludge, Varnish, Acid and Water removal by One unit

DOWNLOAD DATASHEET

Particle and water contaminations in lubricating and hydraulic oils cause serious operating problem such as shortening the life of system.
Also, organic oxide such as varnish and sludge has an impact on machine failure and abnormal wear.

CAPSULE developed a total purifier that can monitor and control all kinds of contaminations effectively as well as lowering Acid Number.

Performance Result

Test Oil : Turbine Oil(32cSt)/200 Liter, EHC Oil(46cSt) /200 Liter

  • Particle removal
    - below ISO17/14/12
  • Acid removal
    - EHC Oil : 2.0 ~0.08 -> ~50ppm
  • Water removal
    - Turbine Lub. oil : 2,000ppm
      EHC oil : 2,000ppm ~80ppm

System Information

Main Function

  • Particle Removal
    - Removes particle with high performance particle filter (beta ratio 1,000)
  • Varnish & Sludge Removal
    - Removes sludge and varnish (degradation products in solution with Ion Exchanged type filter (patent technology)
  • Acid Removal
    - Removes acid with Ion Exchanged type filter (patent technology)
  • Moisture Removal
    - Removes 100% of Free water& 90% of dissolved water with membrane and dry nitrogen.
    - Effectively removes water from EHC oil
  • Condition Monitoring(Optional)
    Cleanliness/Water/Viscosity/Color/Temperature

Benefit

  • No failure and Long life of Machinery
  • Practice Proactive Maintenance
  • Reduce Maintenance & Operating Cost
  • Increase Asset efficiency
  • Reduce wastes

General Specification

Flow rate : 46 L/min
Op. Temp : 40°C ~ 65°C
Power : 480ACV-3HP-3P (option)
Viscosity : max. 220cSt(at 40°C )
Fluid : Mineral oil, Synthetic oil(EHC)
Others : Portable type

Parts Specification

  • Particle removal filter
    - Beta ratio 1,000, Absolute Filter
    - Ratings : : 1μm, 3μm, 6μm, 12μm (optional)
  • Varnish & Sludge remover
    - Ion Exchanged type filter (patent technology)
  • Acid remover
    - Ion Exchanged type filter (patent technology)
  • Water remover
    - Portable Membrane type (Turbine/Lubricant oil)
    - Dried Nitrogen into Reservoir (Control Oil/EHC)
  • Real-time oil condition monitoring (opt.)
    - Cleanliness : Laser type, ISO/SAE/Count
    - Particle : Saturation % or ppm(calculated)
    - Temp. :     °C
    - Color : ASTM D1500, Values are 0.5~8
