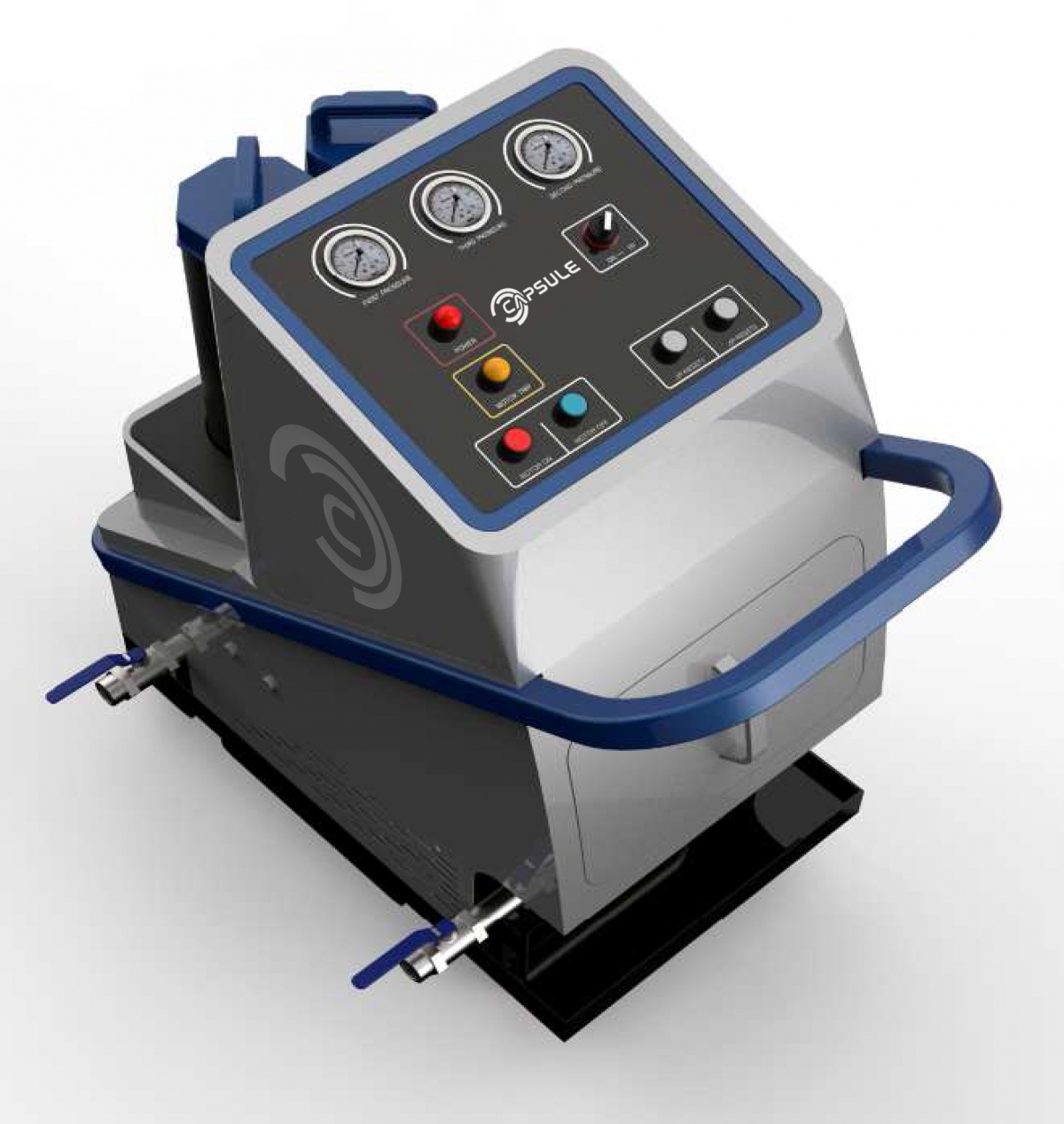

EVO Oil Filtration Unit
The most reliable and efficient solution to extend oil life and protect equipment from external contaminants and oil degradation, which are root cause for failure of the equipment.
DOWNLOAD DATASHEET
For reliable operation of the equipment on site, lubrication management is absolutely required.
CAPSULE OFU Series is the most reliable and efficient solution to extend oil life and protect equipment from external contaminants and oil degradation, which are root cause for failure of the equipment.
CAPSULE OFU Series offers various filter carts to remove not only particle and water but also acid, sludge and varnish, of which filters user can use in turn with common filter housings depending on application
Functions & Features
- Ergonomic design provides safety for transportation and working on site
- Auto stop when filter is clogged by differential pressure switch
- Fitted with high performance and high efficiency filter element with Beta ratio 1,000
- Various particle filters available for 0.9, 1, 3, 6, 12, 25μm
- Water adsorption filters available for 3, 6, 12, 25μm
- Ion-exchange type composite resin filters available for sludge, varnish and acid removal
- Control panel mounted · Can apply for all lubrication and hydraulic systems
